Product Introduction

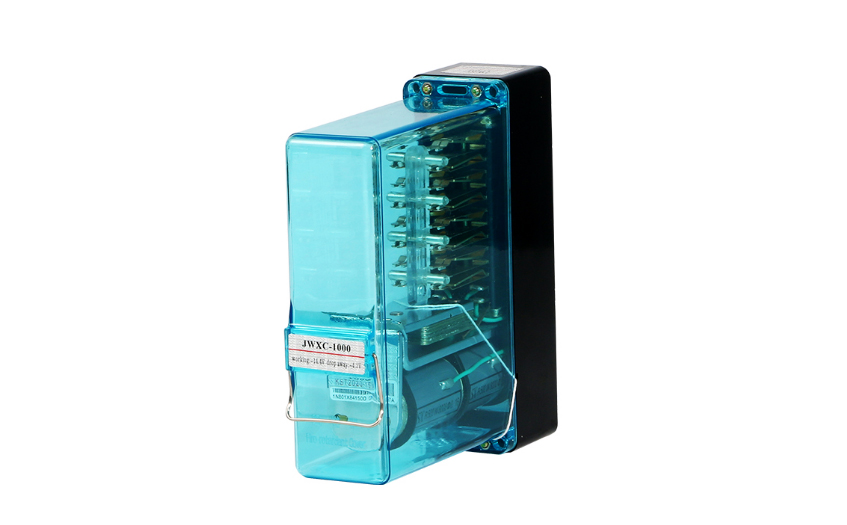

JWXC-1000 type infinite relay is used to close and open the special multi-way switch of signal control circuit. It is an important part of railway signal. It plays an important role no matter as the core component of the relay signal system or as the interface component of the electronic or computer signal system. The reliability of the action of the relay directly affects the reliability and safety of the signal system.

Features

JWXC-1000 type infinite relay is one of the main components in railway signal equipment. Its reliability and safety in use are necessary requirements to ensure the normal operation of various automatic control and remote control signal equipment.

Product function

The signal relay is an important component in the interlocking equipment, and is the main equipment to ensure the safe operation of the system. The signal relay can control the switching of the turnout, lock and unlock the route, and control the opening and closing of the signal machine. Its reliability, availability, maintainability and the whole line are the keys to the safety of railway transportation and operation services.

Product Usage

The JWXC-1000 type infinite relay is used as a general relay in the signal circuit.

Executive standard

GB/T7417-2010 "Railway Signal AX Series Relay"

Product Usage

JWXC-1000 type infinite relay (hereinafter referred to as relay) is used as a general relay in the signal circuit.

Applicable environment

The applicable environment of the relay is:

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25°C);

c) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.

Applicable characteristics

Mechanical properties

Number of contact groups: 8QH;

Identification pin number: 11, 52;

Contact gap: not less than 1.3mm;

Pallet gap: not less than 0.35mm;

Contact pressure: the dynamic contact point is not less than 250mN; the dynamic disconnection point is not less than 150mN;

Contact uniformity error: not more than 0.20mm.

Electrical characteristics

Coil resistance: 500 (1±10%) Q×2

The coils are connected in series, connect 2, 3, use 1, 4;

Rated value: DC24V;

Magnetizing value: DC58V;

Working value: not more than DC14.4V;

Release value: not less than DC4.3V;

Reverse working value: not more than DC15.8V;

Contact resistance: not more than 0.05146079579412233

Insulation withstand voltage

Under the standard atmospheric conditions of the test, the absolute resistance of the relay should not be less than 100MQ.

Under the condition that the air pressure is not lower than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 2000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.

Product electrical life

The relay contacts are connected to DC24V1A resistive load; its electrical life is 2×10⁶ times.

Installation Precautions

1. When installing the relay, make sure that the insulation interval between the sockets is intact, the socket hanging spring is intact, and the socket identification pin is in the correct position and should not be missing.

2. Pay attention to the relative position between the relay and the socket when plugging in the relay to avoid damage to the relay or socket during plugging.

3. When repairing or replacing the relay, first remove the national relay spring, and then pull out the relay. Do not use excessive force or shake left and right when pulling out.

Damage to the relay or socket.

Faults and troubleshooting methods

Relay does not release

The relay non-release analysis and troubleshooting methods are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the input voltage or current of the relay coil should meet the requirements of the system circuit for reliable release of the relay.

Method: Use a multimeter to check that the voltage relay coil input terminal voltage on the socket should be less than the release voltage of the relay; use a multimeter to check that the voltage drop of the current relay coil input terminal on the socket should meet the requirements for reliable release of the relay in the system circuit; otherwise, it is a system failure;

(3) If the above two items are normal, it can be determined that the relay is faulty and the relay should be replaced;

(4) Check that the relay should not be mechanically blocked. If a foreign object in the relay blocks the armature, the relay cannot be reliably released.
