Product Introduction

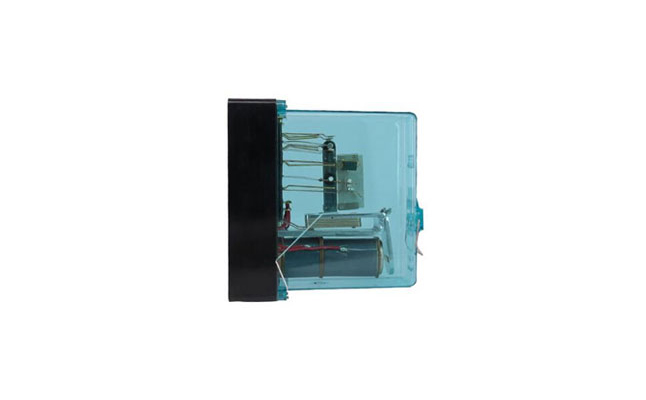

JWJXC-H125/80 stepless strengthened contact slow release relay is used to close and open the special multi-way switch of the signal control circuit. It is an important part of the railway signal. It plays an important role no matter as the core component of the relay signal system or as the interface component of the electronic or computer signal system. The reliability of the action of the relay directly affects the reliability and safety of the signal system.

Features

JWJXC-H125/80. Infinitely strengthened contact slow release relay is one of the main components in railway signal equipment. Its reliability and safety in use are necessary requirements to ensure the normal operation of various automatic control and remote control signal equipment.

Product function

The signal relay is an important component in the interlocking equipment, and is the main equipment to ensure the safe operation of the system. The signal relay can control the switching of the turnout, lock and unlock the route, and control the opening and closing of the signal machine. Its reliability, availability, maintainability, and transportation are the keys to the safety of railway transportation and operational services.

Product Usage

JWJXC-H125/80. The stepless strengthened contact slow release relay is used as a general relay in the signal circuit.

Applicable environment

The applicable environment of the relay is:

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25℃);

c) Air pressure: not less than 70kPa (equivalent to below 3000m above sea level);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.

Applicable characteristics

Mechanical properties

Ordinary contact pressure: dynamic closing or positioning contact is not less than 150 contact groups: 2QH, 2QJ, 2H;

Identification pin number: 31, 52;

Ordinary contact gap: not less than 1.3mm;

Strengthen the contact gap: not less than 2.5mm;

Ordinary pallet gap: not less than 0.35mm;

Reinforced pallet gap: not less than 0.1-0.3mm; mN; dynamic break or reverse contact point not less than 150mN;

Strengthen the contact pressure: the dynamic closing or positioning contact is not less than 400mN; the dynamic breaking or reverse position contact is not less than 300mN;

Contact uniformity error: not more than 0.20mm.

Electrical characteristics

Coil resistance: 125, 80 (1±10%) Ω,

Coil single connection, use 1, 2, 3, 4;

Rated value: DC24, 24V;

Magnetizing value: DC48, 48V;

Working value: not more than DC12, 12V;

Release value: not less than DC2.5, 2.5V;

Reverse working value: not more than DC13.2, 13.2V;

Release time: when 18V is not less than 0.4S, 0.4S, when 24V is not less than 0.5S, 0.5S

Contact resistance: not more than 0.10Ω.

Insulation withstand voltage

Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MQ.

Under the condition that the air pressure is not lower than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 2000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.

Product electrical life

The relay contacts are connected to DC24V1A resistive load; its electrical life is 2×106 times.

Executive standard

GB/T7417-2010 "Railway Signal AX Series Relay"

product structure

The electromagnetic system of the stepless enhanced contact slow release relay is the same as that of the stepless slow release relay (JWXC-H340). The magnetic circuit system of the JWJXC-H125/80 stepless enhanced contact slow release relay adds a copper short-circuit ring to make the slow release longer.

The contact system consists of two parts: ordinary contacts and enhanced contacts. The structure of ordinary contacts is the same as that of non-polar relays, and the reinforced contacts are specially designed high-power contacts and arc extinguishers.

Installation Precautions

1. When installing the relay, make sure that the insulation interval between the sockets is intact, the socket hanging spring is intact, and the socket identification pin is in the correct position and should not be missing.

2. Pay attention to the relative position between the relay and the socket when plugging in the relay to avoid damage to the relay or socket during plugging.

3. When repairing or replacing the relay, first remove the national relay spring, and then pull out the relay. Do not use excessive force or shake left and right when pulling it out, as it may damage the relay or socket.

Faults and troubleshooting methods

1. The relay contact has no output

The analysis and elimination methods of the relay contact without output are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the relay should not be mechanically blocked. If foreign matter in the relay blocks the armature, the armature cannot work reliably (forward rotation) or release (reverse rotation), and the contacts cannot be reliably contacted;

(3) Check that there should be no foreign matter between the contacts, there is foreign matter between the contacts, and the contacts cannot be reliably contacted;

(4) Check that the contact resistance of the relay contact should not be too large.

2. The relay does not work or the relay with a pole cannot be reversed in the forward direction

The relay does not work or the relay with a pole cannot be reversed in the forward direction. The analysis and troubleshooting methods are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the input voltage or current of the relay coil should be the rated value or the system circuit adjustment value.

Method: Use a multimeter to check the voltage relay coil input terminal voltage on the socket should meet the output voltage of the power supply screen; use a multimeter to check the voltage drop of the current relay coil input terminal on the socket should meet the voltage drop requirements of the system circuit for reliable operation of the relay; otherwise, system error;

(3) If the above two items are normal, it can be determined that the relay is faulty and the relay should be replaced;

(4) The relay coil is short-circuited or disconnected, the relay cannot work reliably or has a pole relay;

(5) The diode of the rectifier relay is impacted or short-circuited, and the rectifier relay cannot work reliably;

(6) Check that the relay should not be mechanically blocked. If a foreign object in the relay blocks the armature, the relay cannot work reliably or reverse poles in the forward direction.

3. The relay does not release

The relay non-release analysis and troubleshooting methods are as follows:

(1) Make sure that the relay and socket should be connected reliably;

(2) Check that the input voltage or current of the relay coil should meet the requirements of the system circuit for reliable release of the relay.

Method: Use a multimeter to check that the voltage relay coil input terminal voltage on the socket should be less than the release voltage of the relay; use a multimeter to check that the voltage drop of the current relay coil input terminal on the socket should meet the requirements for reliable release of the relay in the system circuit; otherwise, it is a system failure;

(3) If the above two items are normal, it can be determined that the relay is faulty and the relay should be replaced;

(4) Check that the relay should not be mechanically blocked. If a foreign object in the relay blocks the armature, the relay cannot be reliably released.

maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.

Regular maintenance:

In the electrical life and life management cycle of the relay, the maintenance cycle of the infinite relay and rectifier relay should be five years; the maintenance cycle of the stepless enhanced contact relay, the poled relay and the biased pole relay should be three years; the maintenance cycle of the stepped enhanced contact relay The period should be one year. Appearance inspection and performance inspection should be carried out after the overhaul.

After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; for relays that exceed the warranty period, the company will provide lifetime technical support based on the actual situation and maintenance items, and create conditions for users to master the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this manual or fails to perform normal maintenance according to the maintenance manual during the installation and use process, the company will not bear any responsibilities arising therefrom;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not bear any responsibilities arising therefrom;

d) Our company's parts and components are assembled into the company's products without the consent of Shanghai Shenxin Railway Signal Equipment Co., Ltd. and cause product quality problems, and the company does not bear any responsibility for this;

e) The company does not assume any responsibility for damage caused by natural disasters, such as earthquakes, floods, lightning strikes, landslides and other irresistible causes;

f) Damage caused by sabotage, theft or fire extinguishing, or damage caused by other reasons not caused by the company. The company will not bear any damage caused thereby.
