Product Features

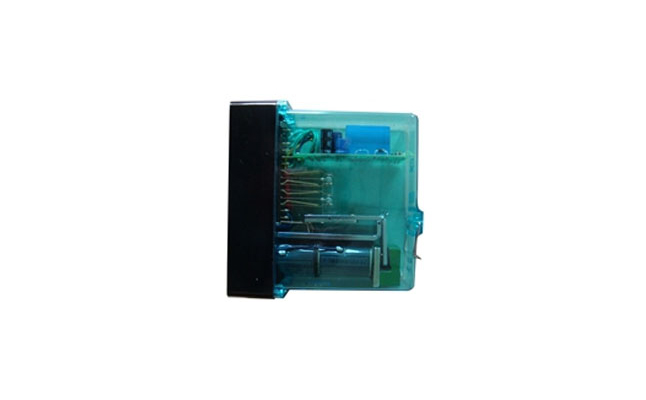

JSDPC-1000 dynamic relay, JSDPC-820 dynamic relay, and JSDPC-830 dynamic relay were once used in microcomputer interlock interface circuit.

At present, JSDPC-1000 dynamic relays, JSDPC-820 dynamic relays, and JSDPC-830 dynamic relays have ceased to be used on large railways, and are only used in hump circuits when users require them.

Features

1. Two-way dynamic control signal relay.

2. Controlled by dynamic pulse signal.

3. Dynamic pulse control signal:

JSDPC-1000 dynamic relay is 24V, 2.5Hz.

JSDPC-820 dynamic relay is 24V, 1Hz.

JSDPC-830 dynamic relay is 24V, 5Hz.

Dimensions

165mm×49mm×163mm (length×width×height)

Installation method

The relay socket is installed on the combination frame (cabinet) with bolts, and the relay is inserted into the socket horizontally and fastened with a storage battery.

JWXC-1000/7 type relay identification pin numbers 11, 52; JWXC-1700 type relay identification pin numbers 11, 51.

Installation Precautions

1. When installing the relay, make sure that the insulation interval between the sockets is intact, the socket hanging spring is intact, and that the socket identification pin is in the correct position and should not be missing.

2. Pay attention to the relative position between the relay and the socket when plugging in the relay to avoid damage to the relay or socket during plugging.

3. When repairing and replacing the relay, first remove the set relay spring, and then pull out the relay. Do not use excessive force or shake left and right when pulling it out, as it may damage the relay or socket.

Troubleshooting method

1. The relay contact has no output

The analysis and elimination methods of the relay contact without output are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the relay should not be mechanically blocked. If foreign matter in the relay blocks the armature, the armature cannot work reliably (forward rotation) or release (reverse rotation), and the contacts cannot be reliably contacted;

(3) Check that there should be no foreign matter between the contacts, there is foreign matter between the contacts, and the contacts cannot be reliably contacted;

(4) Check that the contact resistance of the relay contact should not be too large.

2. The relay does not work or the relay with a pole cannot be reversed in the forward direction

The relay does not work or the relay with a pole cannot be reversed in the forward direction. The analysis and troubleshooting methods are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the input voltage or current of the relay coil should be the rated value or the system circuit adjustment value.

Method: Use a multimeter to check the voltage relay coil input terminal voltage on the socket should meet the output voltage of the power supply screen; use a multimeter to check the voltage drop of the current relay coil input terminal on the socket should meet the voltage drop requirements of the system circuit for reliable operation of the relay; otherwise, system error;

(3) If the above two items are normal, it can be determined that the relay is faulty and the relay should be replaced;

(4) The relay coil is short-circuited or disconnected, the relay cannot work reliably or has a pole relay;

(5) The diode of the rectifier relay is impacted or short-circuited, and the rectifier relay cannot work reliably;

(6) Check that the relay should not be mechanically blocked. If a foreign object in the relay blocks the armature, the relay cannot work reliably or reverse polarity.

3. The relay does not release

The relay non-release analysis and troubleshooting methods are as follows:

(1) Make sure that the relay and socket should be reliably plugged in;

(2) Check that the input voltage or current of the relay coil should meet the requirements of the system circuit for reliable release of the relay.

Method: Use a multimeter to check that the voltage relay coil input terminal voltage on the socket should be less than the release voltage of the relay; use a multimeter to check that the voltage drop of the current relay coil input terminal on the socket should meet the requirements for reliable release of the relay in the system circuit; otherwise, it is a system failure;

(3) If the above two items are normal, it can be determined that the relay is faulty and the relay should be replaced;

(4) Check that the relay should not be mechanically blocked. If a foreign object in the relay blocks the armature, the relay cannot be reliably released.

maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.

In the electrical life and life management cycle of the relay, the maintenance cycle of the stepless relay and the rectifier relay should be five years;

The overhaul period of stepless enhanced contact relays, poled relays and biased pole relays should be three years;

The overhaul period of stepped reinforced contact relays should be one year.

Appearance inspection and performance inspection should be carried out after the overhaul.

Product barcode

The relay company bar code is pasted on the armature, and the Ministry of Railways bar code is pasted on the external device. When the product has quality problems or the user has doubts about the product quality, please refer to the digital code of the bar code and feedback the company in time, so that the manufacturer can obtain the product information in the first time, and achieve product quality tracking and after-sales service.

After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; for relays that exceed the warranty period, the company will provide life-long technical support based on the actual situation and maintenance items, and create conditions for users to master the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this manual or fails to perform normal maintenance according to the maintenance manual during installation and use, the company will not bear any responsibility for the damage;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not bear any responsibilities arising therefrom;

d) Non-Shanghai Shenxin Railway Signal Equipment Co., Ltd. components that are assembled into the company's products without the company's consent cause product quality problems, and the company does not assume any responsibility arising therefrom;

e) The company does not assume any responsibility for damage caused by natural disasters, such as earthquakes, floods, lightning strikes, landslides and other irresistible causes;

f) Damage caused by destruction, theft or fire extinguishment, or damage caused by other reasons not caused by the company, the company does not assume any liability arising therefrom.
